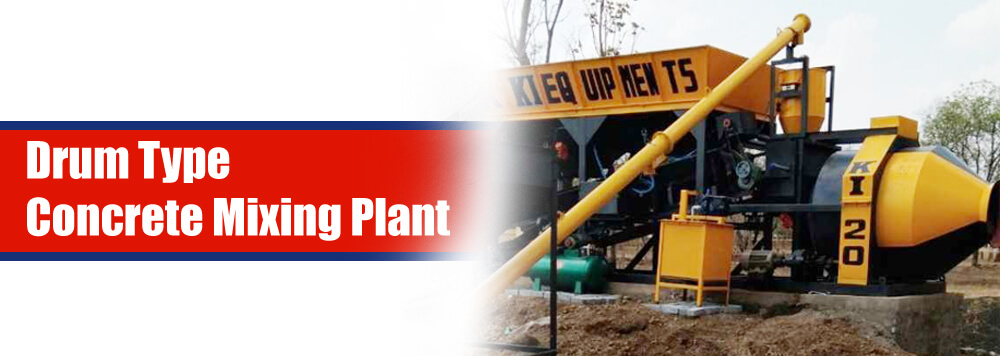

- Drum Type Concrete Mixing Plant
- Pan Type Batching Plant
- Twin Shaft Concrete Batching Mixing
- Inline Series Batching & Mixing Plant
- FULLY Automatic Batching & Mixing Plant
- Batching & Mixing Plant
- Concrete Batching & Twin Shaft Mixing Plant
- Ready Mix Concrete Batching Plant
- Reversible Drum Inline Batching Plant

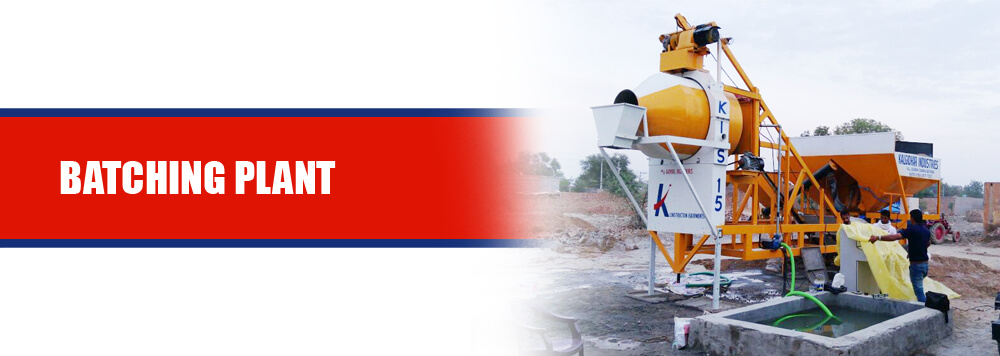

- Batching Plant
Another mobile type concrete batching plant series which comes with proven reversible drum type concrete mixer which is highly appreciated by the industry. Economic design and very cost effective than other mobile type concrete batching plants as it has very low operating cost and less connected power hence consumes less electricity.
- Load out belt conveyor
- prefeb cabin for control panel
| Model | KI 15 | KI 20 | KI 30 |
|---|---|---|---|
| Output Capacity | 15 M3/Hr. | 20 M3/Hr. | 30 M3/Hr. |
| MIXER TYPE | REVERSIBLE DRUM TYPE MIXER | ||
| MAXING AND DISCHARGE OF CONCRETE | FORWARD ROTATION OF THE DRUM MIX THE MATERIAL AND REVERSE ROTATION OF THE DRUM DISCHARGE THE CONCRETE | ||
| MAIN DRIVE OF MIXER | 7.5 HP | 10 HP | 15 HP |
| PLANT ESSEMBLY | WHOLE PLANT ESSEMBLY ON SINGLE CHASSIS | ||
| MATERIAL STORAGE SYSTEM | 2X2 & 3X4 CROSS BIN FEEDER | ||
| MATERIAL STORAGE CAPACITY | 10 M | 12 M | 14 M |
| MATERIAL WEIGHING SYSTEM | Digital load cell based weighing | ||
| CEMENT FEEDING SYSTEM | THROUGH INCLINED SCREW CONVEYOR | ||
| WATER FEEDING SYSYTEM | BY WEIGHT WATER FEEDING SYSTEM | ||
| WATER TANK CAPACITY | 200 LITERS | 250 LITER | 300 LITER |
| ADMIXTURE DOZING SYSTEM | AUTO ADMIXTURE DOZING SYSTEM | ||
| TYRES | 4 No. (Optional) | 4 No. (Optional) | NO |
| TOW BAR FACILITY | YES | YES | NO |
| CONTROL PANEL | PLC BASED CONTROL PANEL WITH INTERNAL CABLING | ||
| TOTAL CONNECTED POWER | 28 HP | 35 HP | 43 HP |
| SUGGESTED DG SET | 42 KVA | 50 KVA | 62 KVA |
| CONCRETE DISCHARGE HEIGHT | 1.2 METER | 1.5 METER | 1.8 METER |

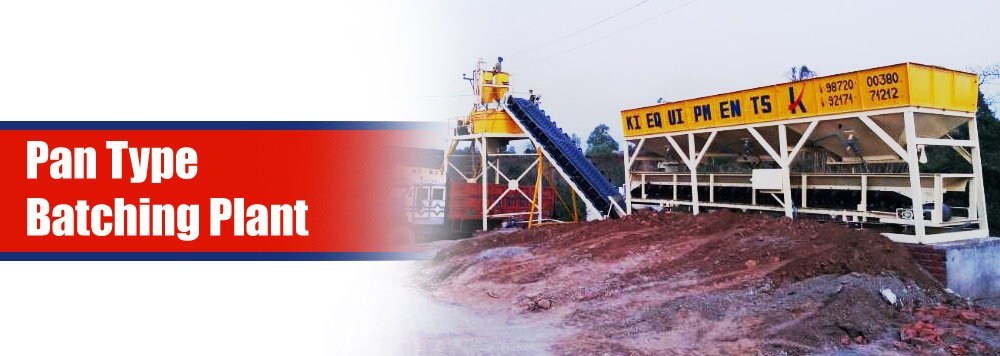

Pan Mixer Batching Plant, especially designed for the production of concrete at sites where the quality, flexibility and performance are key features to consider.
The main advantage of Pan Mixer Batching Plant is that it doesn’t require large foundations and others civil constructions. The time and money can be saved by easy transportation, assemble and disassemble when plant is shifting from one site to another site.
It’s easy to disassemble, transport and assemble again. In one week we assemble your plant in a new site producing concrete, saving you time and money.
- Available in 20 & 30 m3/hr. capacity.
- Compact and economically designed.
- Heavy duty structure.
- Plug-on & Operate concrete batching plant.
- Less space required because of its compactness.
- Civil Foundation work is very fewer as compact design.
- Negligible owning & operating cost Pan Mixer Batching Plant.
- Longer life of wear & tear parts.
- Especially quick erection & commissioning.
- Inbuilt pipeline of water, additive and pneumatic.
- One operator can run the Pan Mixer Batching Plant.
- Twin Shaft and Planetary Mixer Available on request.
| Model | KIP 20 | KIP 30 | KIP 45 | KIP 60 | KIP 90 |
|---|---|---|---|---|---|
| Output Capacity | 20 M3/Hr. | 30 M3/Hr. | 45 M3/Hr. | 60 M3/Hr. | 90 M3/Hr |
| Mixer Unit | Turbo pan type mixer/twin shaft mixer | ||||
| Main mixer reduction gear box | Imported planetary reduction gear box | ||||
| Main Driver / electrical motor | 20 HP | 30 HP | 40 HP | 50 HP | 80 HP |
| Material storage unit | 2x2 cross bin | In line four bin feeder | |||
| Material Storage capacity | 20 M3 | 30 M3 | 40 M3 | 60 M3 | 90 M3 |
| Material Weighing system | Digital load cell based weighing of material | ||||
| Batch feeding system | Through inclined belt conveyor/inclined skip bucket | ||||
| Cement feeding system | Through screw conveyor | ||||
| Water weighing system | Digital load cell based weighing of water in separate tank | ||||
| AD mixture dozing system | Auto admixture dozing system | ||||
| Control panel | Fully automatic PLC based control panel | ||||
| Control cabin | Provided | ||||
| Concrete discharge height | 4.2 meter from the ground level | ||||
| Total connected power (HP) | 52 HP | 72 HP | 97 HP | 112 HP | 140 HP |
| Suggested DG Set | 62 KVA | 100 KVA | 125 KVA | 140 KVA | 175 KVA |

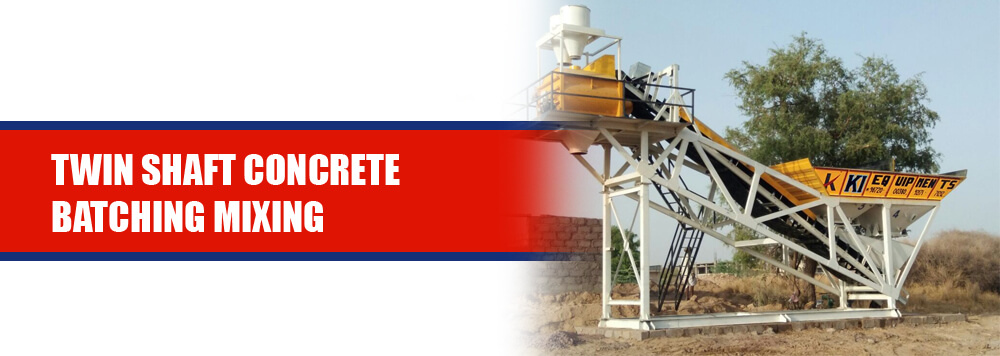

Twin-shaft concrete mixers are ideal for the ready-mix and precast concrete industries where large volumes of high quality concrete are demanded. The powerful twin-shaft mixer, with counter rotating shafts, delivers fast mixing action and rapid discharge and handles mix designs with coarse aggregates up to 6 inches in diameter. Innovative features of engineered mixer are wear-resistant Ni-Hard arms and shovels, replaceable Armor Plate wear liners and an oversized discharge gate for fast discharge and shorter cycle time. The discharge gate is hydraulically actuated, with all critical components mounted externally to avoid exposure to the concrete mix.
| Model | KIT 20 | KIT 30 | KIT 45 | KIT 60 | KIT 90 |
|---|---|---|---|---|---|
| Output Capacity | 20 M3/Hr. | 30 M3/Hr. | 45 M3/Hr. | 60 M3/Hr. | 90 M3/Hr |
| Mixer Unit | Turbo pan type mixer/twin shaft mixer | ||||
| Main mixer reduction gear box | Imported planetary reduction gear box | ||||
| Main Driver / electrical motor | 20 HP | 30 HP | 40 HP | 50 HP | 80 HP |
| Material storage unit | 2x2 cross bin | In line four bin feeder | |||
| Material Storage capacity | 20 M3 | 30 M3 | 40 M3 | 60 M3 | 90 M3 |
| Material Weighing system | Digital load cell based weighing of material | ||||
| Batch feeding system | Through inclined belt conveyor/inclined skip bucket | ||||
| Cement feeding system | Through screw conveyor | ||||
| Water weighing system | Digital load cell based weighing of water in separate tank | ||||
| AD mixture dozing system | Auto admixture dozing system | ||||
| Control panel | Fully automatic PLC based control panel | ||||
| Control cabin | Provided | ||||
| Concrete discharge height | 4.2 meter from the ground level | ||||
| Total connected power (HP) | 52 HP | 72 HP | 97 HP | 112 HP | 140 HP |
| Suggested DG Set | 62 KVA | 100 KVA | 125 KVA | 140 KVA | 175 KVA |

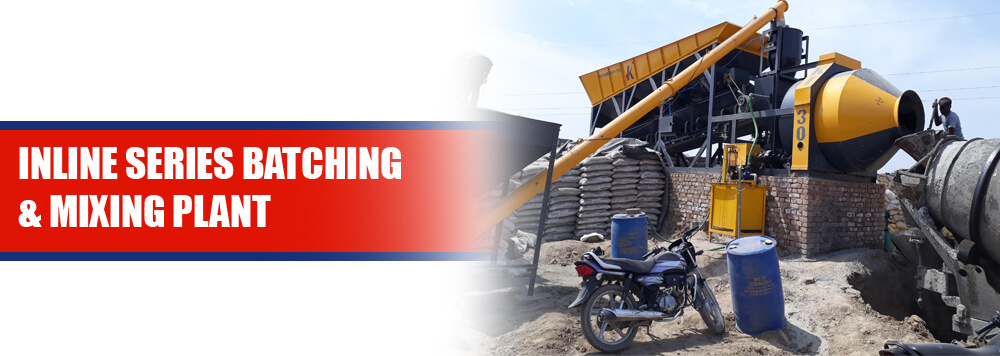

This unit is suitable for a medium scale requirement and is available for 22, 30, 45, 60 and 120 Cu.Mt./Hr capacities. Its design eliminates the need for foundation for the unit. Minimum power requirement and automatic control – PLC and SCADA – are salient features of this series. The specifications mentioned below are for 30 and 60 Cu.Mt./Hr respectively.
- Vibrated Batch Capacity – 500 Lts. and 1000 Lts.
- Skip Capacity – 1050 Kgs and 2100 Kgs.
- Main Motor - 30 H.P. and 50 H.P.
- Skip Motor - 10 H.P. and 20 H.P.
- Aggregate Storage and Feeding System – Inline Bin.
- Storage Bins – 4 Nos.
- Gross Storage Capacity – 26 Cu.Mt. and 36 Cu.Mt.
- Cycle Control – Fully Automatic with PLC System Control and SCADA.
- Cement Weighing Bin Capacity – 250 Kgs. And 500 Kgs.
- Suggested Generator Capacity – 100 KVA and 140 KVA.
| Model | KI 15 | KI 20 | KI 30 |
|---|---|---|---|
| Output Capacity | 15 M3/Hr. | 20 M3/Hr. | 30 M3/Hr. |
| MIXER TYPE | REVERSIBLE DRUM TYPE MIXER | ||
| MAXING AND DISCHARGE OF CONCRETE | FORWARD ROTATION OF THE DRUM MIX THE MATERIAL AND REVERSE ROTATION OF THE DRUM DISCHARGE THE CONCRETE | ||
| MAIN DRIVE OF MIXER | 7.5 HP | 10 HP | 15 HP |
| PLANT ESSEMBLY | WHOLE PLANT ESSEMBLY ON SINGLE CHASSIS | ||
| MATERIAL STORAGE SYSTEM | 2X2 & 3X4 CROSS BIN FEEDER | ||
| MATERIAL STORAGE CAPACITY | 10 M | 12 M | 14 M |
| MATERIAL WEIGHING SYSTEM | Digital load cell based weighing | ||
| CEMENT FEEDING SYSTEM | THROUGH INCLINED SCREW CONVEYOR | ||
| WATER FEEDING SYSYTEM | BY WEIGHT WATER FEEDING SYSTEM | ||
| WATER TANK CAPACITY | 200 LITERS | 250 LITER | 300 LITER |
| ADMIXTURE DOZING SYSTEM | AUTO ADMIXTURE DOZING SYSTEM | ||
| TYRES | 4 No. (Optional) | 4 No. (Optional) | NO |
| TOW BAR FACILITY | YES | YES | NO |
| CONTROL PANEL | PLC BASED CONTROL PANEL WITH INTERNAL CABLING | ||
| TOTAL CONNECTED POWER | 28 HP | 35 HP | 43 HP |
| SUGGESTED DG SET | 42 KVA | 50 KVA | 62 KVA |
| CONCRETE DISCHARGE HEIGHT | 1.2 METER | 1.5 METER | 1.8 METER |

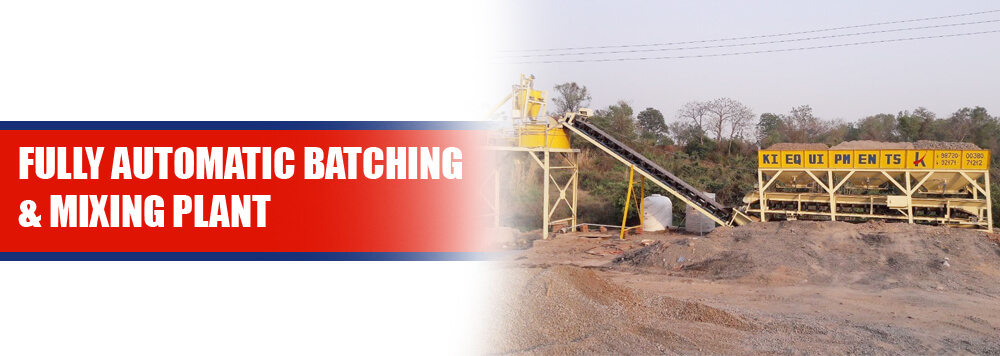

Leveraging on our years of experience and in-depth knowledge, we are capable of manufacturing, supplying and exporting Fully automatic Concrete Batching Plant. All the offered products are designed and manufactured using quality material to ensure that final output meets with international quality standards. Furthermore, we thoroughly check our Fully automatic Concrete Batching Plant on certain well-define parameters to ensure flawlessness.
- Longer functional life
- Sturdy construction
- Low maintenance

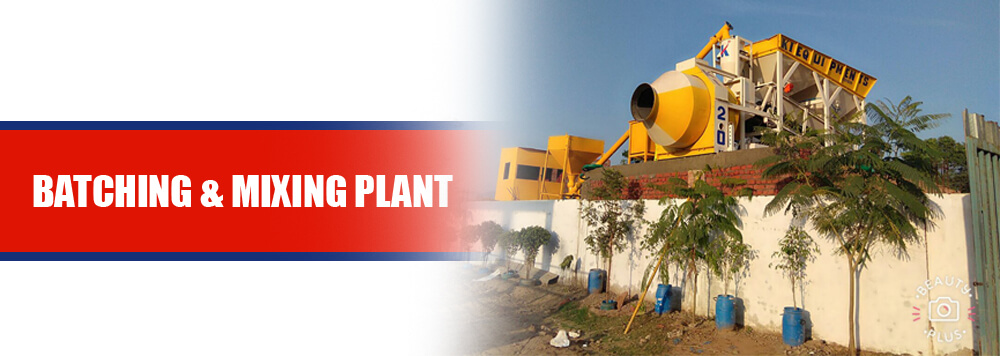

Best Design Suitable for RMC Projects because it consume less space on site and gives accurate output, having whole plant assembly on single chassis with material feeding conveyor so on need to make ramp to feed the bins of the plant. Come with plc based control panel which makes plant operating easy and trouble free.
- Computers SCADA system and software
- Cement storage silos
- Fly ash feeding system and storage silos
| Model | KI 20 | KI 30 |
|---|---|---|
| Output Capacity | 20 M3/Hr. | 30 M3/Hr. |
| PLANT ESSEMBLY | Whole essembly on single chassis | |
| MIXER TYPE | Turbo pan type mixer/ twin shaft mixer | |
| MAIN REDUCTION GEAR | Imported planetary gear box | |
| MAIN MIXER DRIVER | 20HP | 30 HP |
| MATERIAL STORAGE SYSTEM | 2X2 Cross bin feeder | |
| MATRIAL STORAGE CAPACITY | 14 M | 14 M |
| MATRIAL WEIGHING SYSTEM | Digital load cell based weighing system | |
| MATRIAL FEEDING SYSTEM | Through inclined belt conveyor | |
| CEMENT FEEDING SYSTEM | Through inclined screw conveyor | |
| WATER WEIGHING SYSTEM | Digital load cell based weighing of water in separate tank | |
| ADMIXTURE DOZING SYSTEM | Auto admixture dozing system | |
| CONTROL PANEL | Fully automatic PLC based control panel | |
| CONTROL CABIN | Provided | |
| CONCRETE DISCHARGE HEIGHT | 4.2 meter from the ground level | |
| TOTAL CONNECTED POWER | 47 HP | 62 HP |
| SUGGESTED DG SET | 62 KVA | 82 KVA |
Owing to technologically advanced manufacturing facilities, we manufacture, supply and export genuine quality Concrete Batching & Twin-Shaft Mixing Plant. These plants are designed and developed using optimum quality metals in compliance with industry laid guidelines. All the plants are checked on strict quality parameters so that only fine finish products get delivered at customers' location. In addition to this, the Concrete Batching & Twin-Shaft Mixing Plant we offer is fitted with water pumps and air compressors for its optimum functioning.
| Model | KI-60 | KI-90 | KI-120 |
|---|---|---|---|
| ASSURED COMPACTED CONCRETE | 60 CUM | 90 CUM | 120 CUM |
| OUTPUT(MAX.) UNCOMPACTED MATERIAL INPUT(MAX.) | 90 CUM | 135 CUM | 180 CUM |
| MIXER TECHNOLOGY | TWIN-SHAFT COMPULSORY CONCRETE MIXER | TWIN-SHAFT COMPULSORY CONCRETE MIXER | TWIN-SHAFT COMPULSORY CONCRETE MIXER |
| MIXER MODEL | MSO 1500/1000/ DKX 1.00(2 X 22KW)" | MSO 2250/1500 MAO 2250/1500 (2x30 KW) | DKX 2.50/2x37 MAO 3750/2500 (2x37 KW) |
| MIXING BLADE'S | 12 | 14 | 16 |
| CYCLE'S / HOUR | 60 | 60 | 48 |
| ELECTRONIC WEIGHING RANGE WITH LOAD CELL | |||
| AGGREGATE SCALE | 3000 Kgs | 4500 Kgs | 6000 Kgs |
| CEMENT SCALE | 600 Kgs | 900 Kgs | 1200 Kgs |
| WATER SCALE | 300 Kgs | 400 Kgs | 500 Kgs |
| AD-MIX SCALE | 5 Kgs | 10 Kgs | 15s Kgs |
| WATER SUPPLY PUMP | |||
| TYPE | MONOBLOCK SELFSUCTION | MONOBLOCK SELFSUCTION | MONOBLOCK SELFSUCTION |
| BORE | 65 | 80 | 80 |
| MOTOR DRIVING POWER | 5 Kw | 7.5 Kw | 7.5 Kw |
| AGGREGATE STORAGE FOUR BIN FEEDER | 60 TONS (15 Tx4) | 100 TONS (25 Tx4) | 120 TONS (30 Tx4) |
| MAX. AGGREGATE SIZE | 64mm | 64mm | 64mm |
| NO. OF GATES/GATES PER BIN | 4 | 8/2 | 12/3 |
| WEIGHING CONVEYOR | YES | YES | YES |
| LENGTH | 11 MTR | 12 MTR | 12 MTR |
| BELT-WIDTH | 1000mm | 1200mm | 1200mm |
| GEARE MOTOR DRIVING POWER x RPM | 15 H.Px33 | 15 H.P x 33 | 15 H.P x 33 |
| INCLINED CONVEYOR BUCKET! LOADING | YES/YES | YES/YES | YES/YES |
| BELTL-ENGTHB | 55 MTR | 55 MTR | 55 MTR |
| BELT-WIDTH | 700mm | 700mm | 700mm |
| MOTOR DRIVING POWER x RPM | 15 H.P x 100 | 15 H.P x 100 | 15 H.P x 100 |
| BATCH CARRIER OVER MIXER | YES | YES | YES |
| AIR COMPRESSOR | |||
| TYPE | SELF SUCTION | SELF SUCTION | SELF SUCTION |
| MOTOR DRIVING POWER | 7.5 Kw | 11 Kw | 11 Kw |
| STORAGE TANK | 220 It | 300 Itr | 360 Itr |
| OPERATION SYSTEM | FULLY AUTOMATIC COMPUTERIZED PLC BASED CONTROL SYSTEM | ||
| PANEL MODEL | SRK 60 | SRK 90 | SRK 120 |
| INDICATOR | TFT COLOUR MONITOR WITH DUAL PROCESSOR | ||
| PLC | SIEMN'S /DELTA/ ALLEN BRADLEY | ||
| POWER SUPPLY | 415X30 50 Hz | 415X30 50 Hz | 415X30 50 Hz |
We are counted among one of the renowned manufacturers, suppliers and exporters of fine finish Ready Mix Concrete Batching Plant. Only high quality metals are used in designing and development of these plants. These plants are equipped with highly functional control panels so as to control the operations of the plants. Adding to this, Ready Mix Concrete Batching Plant which we offer is widely appreciated by our customers for its outstanding features such as:
- Anti-corrosive nature
- Less maintenance
- Easy installation
- Optimum performance
| Model | KIT 20 | KIT 30 | KIT 45 | KIT 60 | KIT 90 |
|---|---|---|---|---|---|
| Output Capacity | 20 M3/Hr. | 30 M3/Hr. | 45 M3/Hr. | 60 M3/Hr. | 90 M3/Hr |
| Mixer Unit | Turbo pan type mixer/twin shaft mixer | ||||
| Main mixer reduction gear box | Imported planetary reduction gear box | ||||
| Main Driver / electrical motor | 20 HP | 30 HP | 40 HP | 50 HP | 80 HP |
| Material storage unit | 2x2 cross bin | In line four bin feeder | |||
| Material Storage capacity | 20 M3 | 30 M3 | 40 M3 | 60 M3 | 90 M3 |
| Material Weighing system | Digital load cell based weighing of material | ||||
| Batch feeding system | Through inclined belt conveyor/inclined skip bucket | ||||
| Cement feeding system | Through screw conveyor | ||||
| Water weighing system | Digital load cell based weighing of water in separate tank | ||||
| AD mixture dozing system | Auto admixture dozing system | ||||
| Control panel | Fully automatic PLC based control panel | ||||
| Control cabin | Provided | ||||
| Concrete discharge height | 4.2 meter from the ground level | ||||
| Total connected power (HP) | 52 HP | 72 HP | 97 HP | 112 HP | 140 HP |
| Suggested DG Set | 62 KVA | 100 KVA | 125 KVA | 140 KVA | 175 KVA |

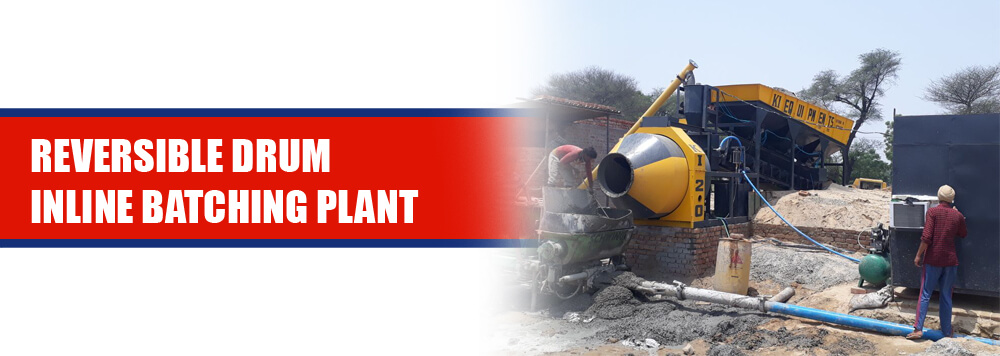

REVERSIBLE CONCRETE MIXER (MINI BATCHING MACHINE) RM SERIES KI make RM series is widely used on various construction sites as it's a compact batching machine having feature like separate weighing of material. auto water dozing system, admixture dozing and printing facility and it comes on 4 pneumatic tyres with tow bar facility which makes it easy to move and shift on site.
- Printing Facility
- Auto admixture dozing system
- Single/two/three bin system
- Pen Drive port facility
| Model | RM 550 E | RM 800 E | RM 1050E |
|---|---|---|---|
| Output Capacity | 8-10 CuM | 10-42 CuM | 12-45 CuMs |
| MIXER TYPE | REVERSIBLE DRUM TYPE MIXER | ||
| MAXING AND DISCHARGE OF CONCRETE | Forward rotation of the drum mix the material and reverse rotation of the drum discharge the concrete | ||
| MAIN DRIVE OF MIXER | 10HP | 12.5 HP | 15 HP |
| Material Weighing system | Digital load cell based weighing of material in each bin | ||
| Water tank capacity | 150 litre | 200 litre | 250 litre |
| Water feeding system | Flow rate based accurate water feeding system | ||
| Pneumatic tyres | 4 no | 4 no | 4 no |
| Hydraulic tank capacity | 40 litre | 40 litre | 60 litre |
| Centralized lubrication system | Inbuilt centralized lubrication system | ||
| Tow bar facility | Yes | Yes | Yes |
| Control panel | Fully automatic based control panel | ||
| Total connected power (HP) | 12.5 HP | 15 HP | 17.5 HP |
| Suggested DG Set | 15 KVA | 22 KVA | 25 KVA |
We have established in the market as reliable manufacturer, supplier and exporter of fine quality Batching Plant. These plants are widely demanded in various construction industries for mixing the concrete materials uniformly. Only high quality metals are used by our professionals so as to design and develop these machines with perfection. In addition to this, Batching Plant we offer is applauded by our patrons for its excellent features such as:
- PLC operated completely automatic control panel (Pan Type)
- Blade mixing technology with planetary gear-boxes.
- Electronic weighing system for better accuracy in design-mix.
- Italian screw feeder, to pour cement speedily.
- Password locking facility.
- Water and ad-mix pour by weight.
- Pneumatically operated gate for aggregate & sand.
- Four Bin Feeder with Belt Conveyor system for aggregate, sand, etc.
- Italian vibrator.
- Tabulated print out system for each batch without printer.
- No pit required only nominal civil work.
- Control Panel with control cabin.
- Hydraulic discharge system.
- With pen drive facilities.
