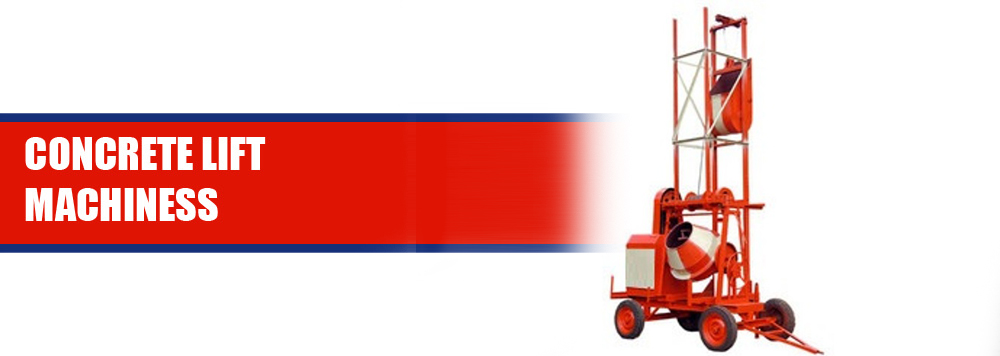

We manufacture an extensive range of Concrete Mixer Machine With Lift, which is well known in the market for its smooth operation. We use high quality raw material that is quality tested to ensure its process . This machine is specially designed for large scale concrete mixing. This machine is manufactured with heavy duty chassis . This machine is specially designed with lift mechanism for best results. We provide 10HP engine in this machine. The specifications of these machines are as follows:
- One bag capacity
- Concrete mixing with 45ft, 55ft, 65ft lift & more..
| CONCRETE MIXER MACHINE WITH LIFT | HEAVY |
| CAPACITY | ONE BAGs |
| ENGINE | 10 HP |

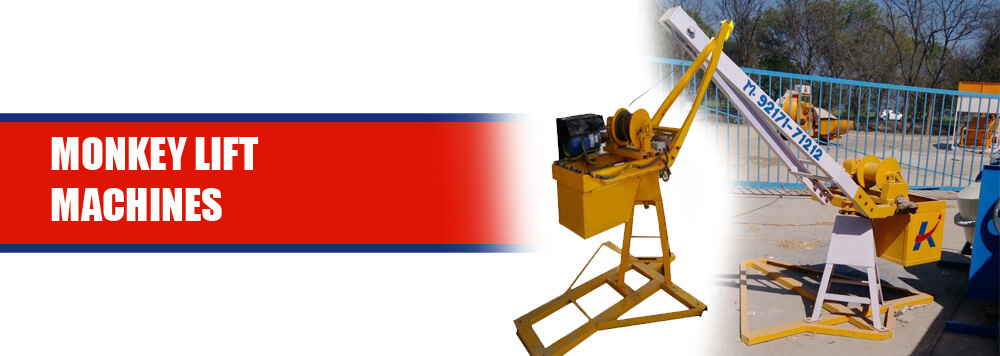

We are leading manufacturers and suppliers of hanging platforms, Monkey Lift mini crane and Mini Crane machines. The specifications of our hanging platforms, Monkey Lift Crane and Mini Crane machines are mentioned above in specifications column. Our Monkey Lift and Mini Crane machines provide for productive and flexible working condition at scattered work sites.

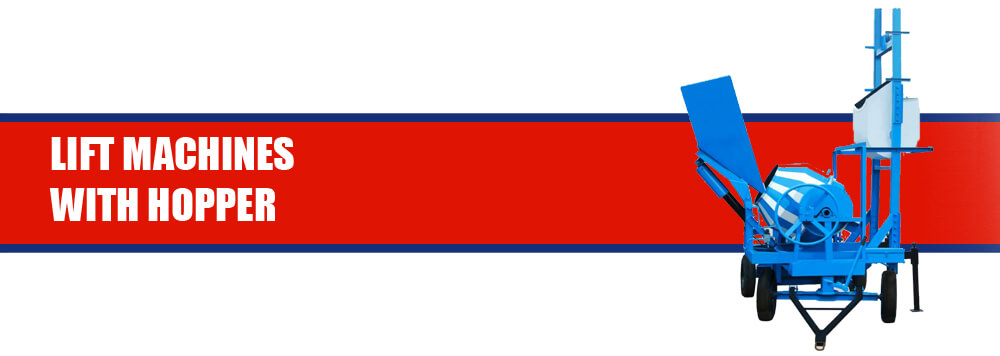

Understanding the needs and of the various industrial sites we are offering a high range of concrete mixer machine lift with mechanical hooper. These machines are widely valued and appreciated among different user all across the market for their compact design, sturdy construction,low maintenance and ideal mixing of material.

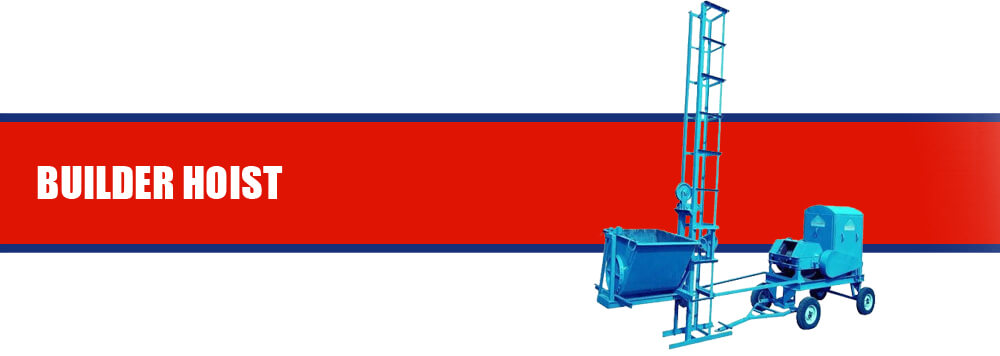

Hoists are heavy duty and require minimum maintenance. They are used to lift concrete and other construction material for slab construction. The scaffolding provided with the Tower Hoist ensures safety at construction sites.
- Easy to install
- Scaffolding ‘H-frame’ of B-Class, ISI marked pipe
- No Foundation Required
- Brand New Tyres
- 12 mm Usha Martin Wire Rope
- Heavy Duty Tower
| MODEL NO. | MODEL NAME | MODEL NAME |
|---|---|---|
| Capacity | Upto 500 kg gross load | Upto 1000 kg gross load |
| Height | Upto 40 Ft | Upto 200 Ft |
| Prime Mover | 8 HP Air cooled diesel Engine/5 HP Electric Motor | Air cooled diesel Engine/ Electric Motor suitable to required height. |
| Column/Tower | Front: 50 x 50 x 6 mm angle Rear: 35 x 35 x 5 mm angle | 50 x 50 x 6 mm angle |
| Wire Rope | 10 mm, 6 x 36 Usha Martin | 12 mm, 6 x 36, Usha Martin |
| Drive | Friction Roller Type | Friction Roller Type |
| Foundation | Not required | Not required |
| Scaffolding | N/A | H Frame – B class 31.75 mm dia pipe ISI mark, & Scissors of 30 x 30 x 3 mm |
| Skip Unit | Heavy Duty with safety lock | Heavy Duty with safety lock |
| Bucket Capacity | 170 litres / 0.17 cubic meters | 250 litres / 0.25 cubic meters |
| Wheels | Brand new 400 x 8 pneumatic tyre with hub & bearing system, and pressed steel plate rims – 4 no’s | Brand new 500 x 19 pneumatic tyre with hub & bearing system, and pressed steel plate rims – 4 No’s |
